Bromic Platinum Smart-Heat Electric Marine 4500W 240V Outdoor Heater - White
Dawson Heat product specialist

Need Help? Our Experts are here to help!

Call Now Call Now Chat Now Chat Now Email Us Email Us

Bromic Platinum Smart-Heat Electric Marine 4500W 240V Outdoor Heater - White

by Bromic
SKU BH3622003
$6,460.30 9% Off ($587.30)
$6,460.30
$6,460.30
$5,873.00
$5,873.00
$5,873.00
RRP $6,460.30
You save $587.30
Free shipping nationwide over $299
+ Free Shipping

Shipping & Delivery

Most orders arrive within 4–10 business days — 1–3 days to ship, 3–7 days in transit. Need it faster? Email info@dawsonheat.com.

Build your product:

✓ 1. Mounting Kit
✓ 2. Heat Control
Add-ons total:

Secure checkout with

American Express Apple Pay Google Pay Mastercard PayPal Shop Pay Venmo Visa
  • Product Description
  • Specifications
  • Guides & Installation

Product Description

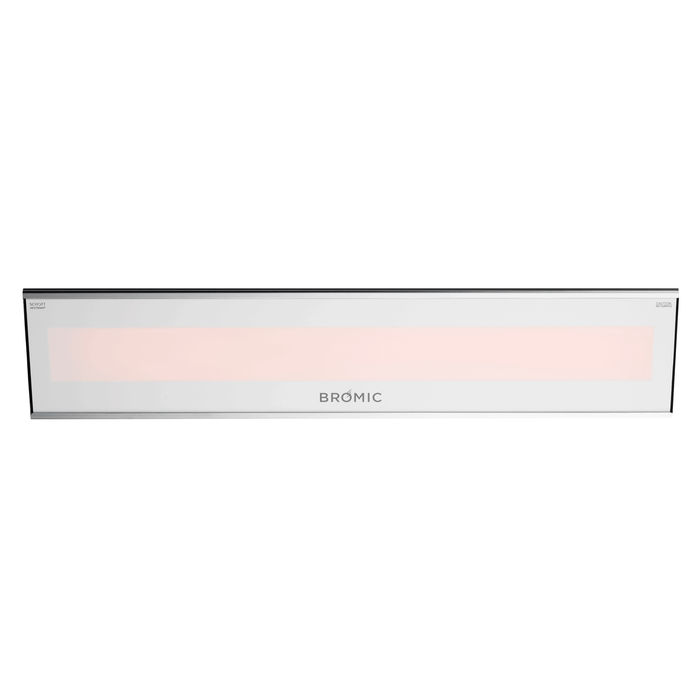

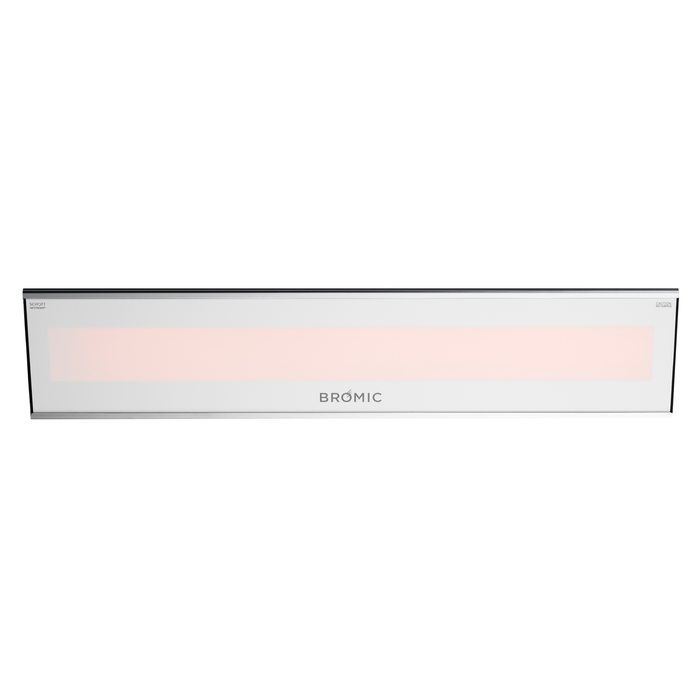

The Bromic Platinum Smart-Heat Electric Marine 4500W is a slim, hard-wired infrared heater for covered outdoor areas such as patios, alfresco dining spaces and semi-enclosed rooms. This white 240V model (part number BH3622003) heats about 143 sq ft and draws 18.8A at 220-240V. The body is 316 marine-grade stainless steel with a tinted glass-ceramic front that spreads heat evenly and keeps visible glow low. The 316 marine-grade build is meant for coastal and corrosive sites, and the sealed element compartment resists corrosion. It mounts to a wall or ceiling with the included bracket, or can be recessed with an optional kit, and must be installed by a licensed electrician.

Features:

  • Slim profile suits low clearances and can be recessed flush into a ceiling
  • Tinted glass-ceramic fascia spreads heat evenly with minimal light emission
  • 316 marine-grade stainless steel body for coastal and marine-environment sites (land-based)
  • Adjustable mounting bracket lets you aim the heat
  • Wall, ceiling, recessed and suspension-pole mounting options
  • Works with Bromic Affinity On/Off and Affinity Dimmer controls (0-100% output) or a manual wall switch
  • Sealed compartment with thin-film elements to resist corrosion
  • Two heating elements (3.0kW + 1.5kW)

Part Number: BH3622003

Wattage: 4500W

Voltage: 220-240V AC, 50/60Hz

Amperage: 18.8A

Heating Area: 143 sq ft

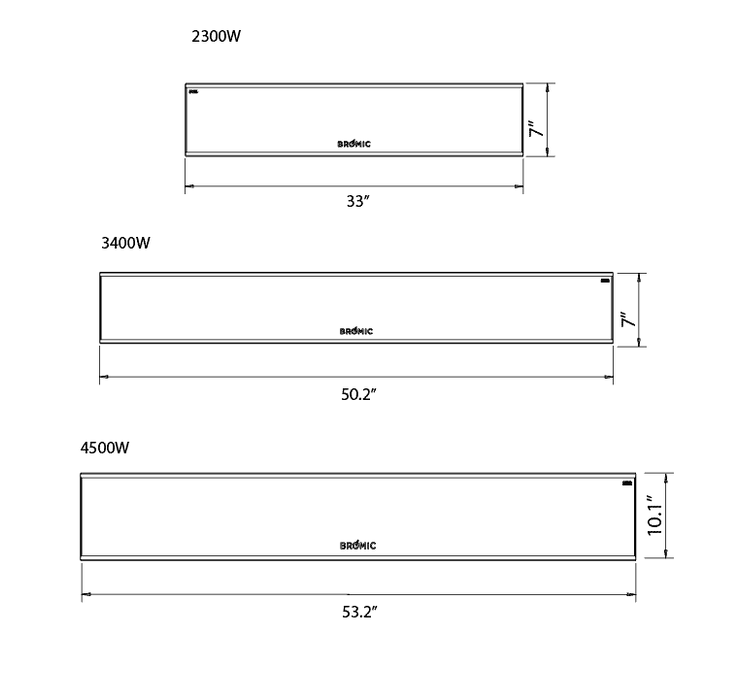

Dimensions: 53.2" W x 10.1" H x 2.1" D (1351 x 257 x 54 mm)

Weight: 33.0 lbs

Color: White

Material: 316 marine-grade stainless steel with tinted glass-ceramic face

IP Rating: IP55

Heating Elements: 2 (3.0kW and 1.5kW)

Fuel Type: Electric (hard-wired)

Mounting: Wall or ceiling (bracket included); recessed (kit sold separately); ceiling suspension pole 2 ft or 4 ft (sold separately)

Minimum Mounting Height: 72" above floor (wall mount); 96" above floor (ceiling mount)

Clearances: 39.4" (1000mm) clear in front of the heater; 20" (500mm) between heaters

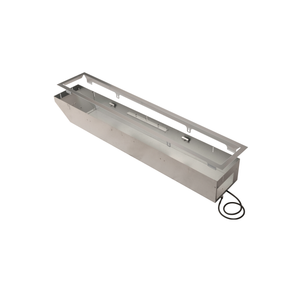

Recess Mounting: Standard recess kit BH3623001 needs 13.8" of space above the heater; a low-clearance recess kit (with a cooling fan on its own power supply) is available

Certification: Intertek ETL / cETL 5001799

Warranty: 5 years for land-based installations; 3 years on marine vessels (per Bromic US spec table)

Compatible With: Bromic Affinity On/Off controller, Affinity Dimmer, manual wall switch (controllers sold separately)

Included: Heater and 8" (200mm) mounting bracket; controllers and other mounting accessories not included

Use: Land-based and coastal installations; marine-grade 316 stainless steel

PDF Spec Sheet (PDF) PDF View PDF Installation Manual (PDF) PDF View
