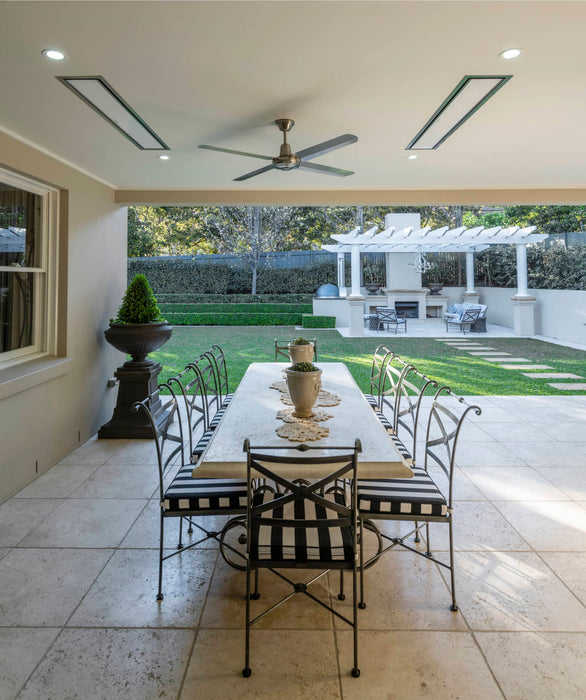

The Bromic Platinum Smart-Heat Electric 4500W is a slim, hard-wired infrared heater for covered outdoor areas such as patios, alfresco dining spaces and semi-enclosed rooms. This white 208V model (part number BH3622005) heats about 143 sq ft and draws 21.6A at 208V. The body is 304 stainless steel with a tinted glass-ceramic front that spreads heat evenly and keeps visible glow low. It is built for sheltered locations and is not intended for coastal or marine environments, where Bromic recommends the Marine version. It mounts to a wall or ceiling with the included bracket, or can be recessed with an optional kit, and must be installed by a licensed electrician.
Features:
- Slim profile suits low clearances and can be recessed flush into a ceiling
- Tinted glass-ceramic fascia spreads heat evenly with minimal light emission
- 304 stainless steel body
- Adjustable mounting bracket lets you aim the heat
- Wall, ceiling, recessed and suspension-pole mounting options
- Works with Bromic Affinity On/Off and Affinity Dimmer controls (0-100% output) or a manual wall switch
- Two heating elements (3.0kW + 1.5kW)
The Bromic Platinum Smart-Heat Electric 4500W is a slim, hard-wired infrared heater for covered outdoor areas such as patios, alfresco dining spaces and semi-enclosed rooms. This white 208V model (part number BH3622005) heats about 143 sq ft and draws 21.6A at 208V. The body is 304 stainless steel with a tinted glass-ceramic front that spreads heat evenly and keeps visible glow low. It is built for sheltered locations and is not intended for coastal or marine environments, where Bromic recommends the Marine version. It mounts to a wall or ceiling with the included bracket, or can be recessed with an optional kit, and must be installed by a licensed electrician.
Features:
- Slim profile suits low clearances and can be recessed flush into a ceiling
- Tinted glass-ceramic fascia spreads heat evenly with minimal light emission
- 304 stainless steel body
- Adjustable mounting bracket lets you aim the heat
- Wall, ceiling, recessed and suspension-pole mounting options
- Works with Bromic Affinity On/Off and Affinity Dimmer controls (0-100% output) or a manual wall switch
- Two heating elements (3.0kW + 1.5kW)
Part Number: BH3622005
Wattage: 4500W
Voltage: 208V AC, 60Hz
Amperage: 21.6A
Heating Area: 143 sq ft
Dimensions: 53.2" W x 10.1" H x 2.1" D (1351 x 257 x 54 mm)
Weight: 33.0 lbs
Color: White
Material: 304 stainless steel with tinted glass-ceramic face
IP Rating: IP54
Heating Elements: 2 (3.0kW and 1.5kW)
Fuel Type: Electric (hard-wired)
Mounting: Wall or ceiling (bracket included); recessed (kit sold separately); ceiling suspension pole 2 ft or 4 ft (sold separately)
Minimum Mounting Height: 72" above floor (wall mount); 96" above floor (ceiling mount)
Clearances: 39.4" (1000mm) clear in front of the heater; 20" (500mm) between heaters
Recess Mounting: Standard recess kit BH3623000 needs 13.8" of space above the heater; a low-clearance recess kit (with a cooling fan on its own power supply) is available
Certification: Intertek ETL / cETL 5001799
Warranty: 3 years
Compatible With: Bromic Affinity On/Off controller, Affinity Dimmer, manual wall switch (controllers sold separately)
Included: Heater and 8" (200mm) mounting bracket; controllers and other mounting accessories not included
