Bromic Marine Ceiling Recess Kit for Platinum Electric Marine 2300W Heaters
Dawson Heat product specialist

Need Help? Our Experts are here to help!

Call Now Call Now Chat Now Chat Now Email Us Email Us

Bromic Marine Ceiling Recess Kit for Platinum Electric Marine 2300W Heaters

by Bromic
SKU BH3130034
$936.10 9% Off ($85.10)
$936.10
$936.10
$851.00
$851.00
$851.00
RRP $936.10
You save $85.10
Free shipping nationwide over $299
+ Free Shipping

Shipping & Delivery

Most orders arrive within 4–10 business days — 1–3 days to ship, 3–7 days in transit. Need it faster? Email info@dawsonheat.com.

Secure checkout with

American Express Apple Pay Google Pay Mastercard PayPal Shop Pay Venmo Visa
  • Product Description
  • Specifications
  • Guides & Installation

Product Description

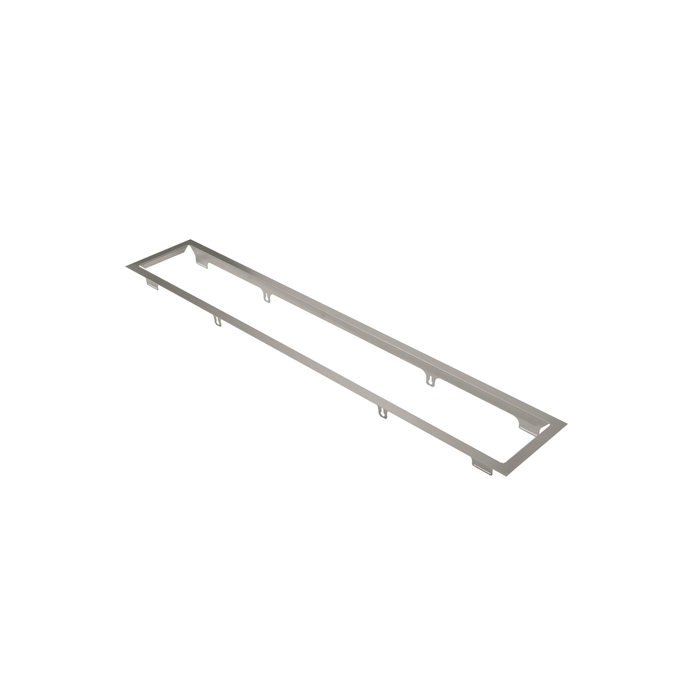

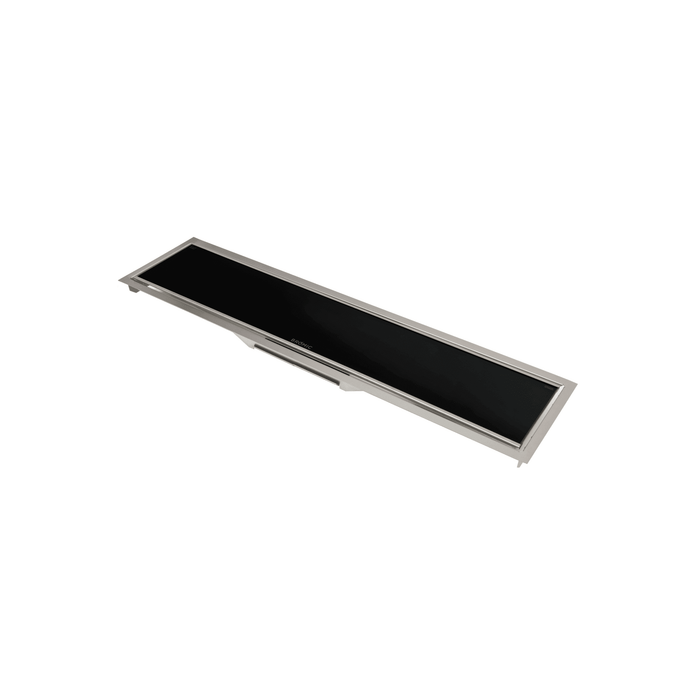

This marine-grade ceiling recess kit (part number BH3130034) flush-mounts a Bromic Platinum Smart-Heat Electric Marine 2300W heater into a ceiling. It is built from brushed 316 stainless steel for coastal and salt-air locations. It is a standard-depth kit intended for ceilings with enough cavity space above; the heater is sold separately.

Features:

  • Flush-mounts a Platinum Electric heater into the ceiling for a clean, built-in look
  • Includes the parts and hardware needed for recessed installation
  • Suited to new builds with enough ceiling cavity depth for the standard kit
  • Fits ceiling linings 10-30mm (0.4"-1.2") thick
  • Heater sold separately; must be installed by a licensed electrician
  • Brushed 316 marine-grade stainless steel for coastal environments

Part Number: BH3130034

Type: Standard ceiling recess kit (not low-clearance)

Compatible With: Bromic Platinum Smart-Heat Electric Marine 2300W heater

Material: Brushed stainless steel 316 (marine grade)

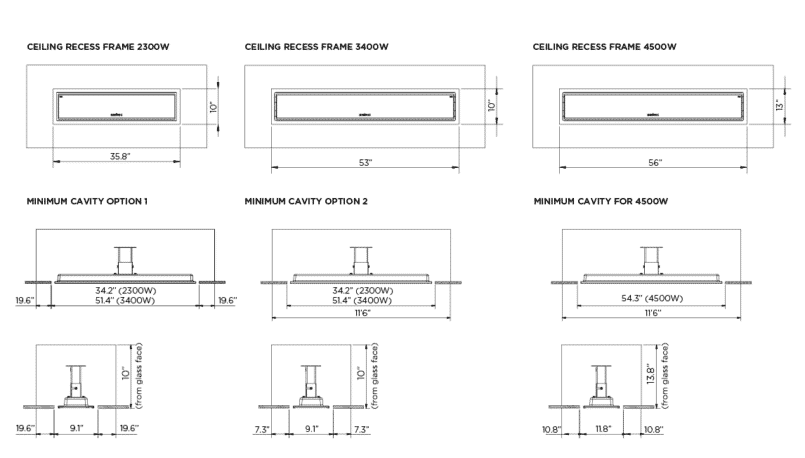

Minimum Cavity Height: 10" above the heater per Bromic spec sheet

Ceiling Thickness: 0.4"-1.2" (10-30mm)

Mounting Height: Heater surface at least 94" (2400mm) above floor

Wall Clearance: 20" (500mm) from cutout to nearest wall on all sides

Heater Spacing: Minimum 20" (500mm) between heaters

Contents (per manual): Ceiling frame, plug-in bracket with cable gland, mounting plate halves, bracket end cap, M5 screws and nuts, M6x14mm and M4x10mm screws, straight covers

PDF Platinum Electric Instruction Manual (PDF) PDF View PDF Platinum Electric Marine Spec Sheet (PDF) PDF View
