Bromic Low-Clearance Ceiling Recess Kit for Platinum Electric 4500W Heaters

by Bromic
SKU BH3623012-1
$2,027.66 9% Off ($183.66)
$2,027.66
$2,027.66
$1,844.00
$1,844.00
$1,844.00
RRP $2,027.66
You save $183.66
Free shipping nationwide over $299
+ Free Shipping

Shipping & Delivery

Most orders arrive within 4–10 business days — 1–3 days to ship, 3–7 days in transit. Need it faster? Email info@dawsonheat.com.

Secure checkout with

American Express Apple Pay Google Pay Mastercard PayPal Shop Pay Venmo Visa
  • Product Description
  • Specifications
  • Guides & Installation

Product Description

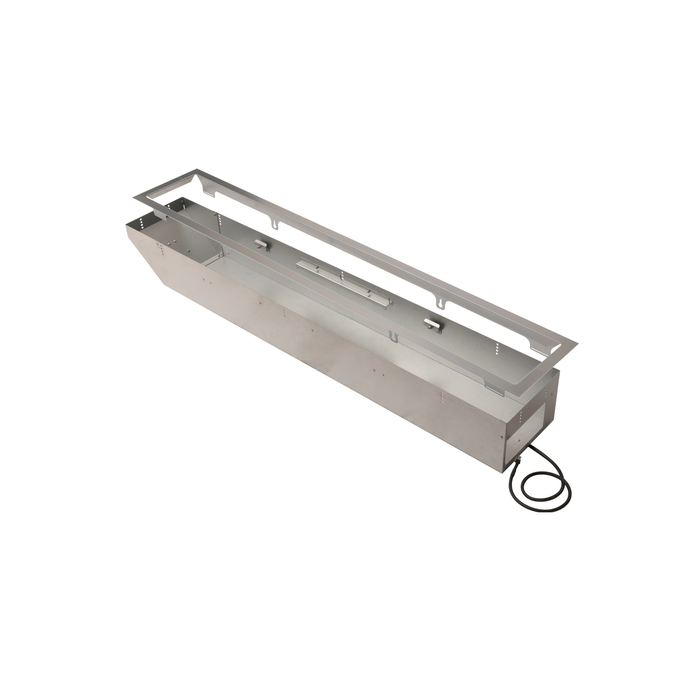

The Low-Clearance Recess Kit (part number BH3623012-1) lets you flush-mount a Bromic Platinum Smart-Heat Electric 4500W heater where there is limited space above the ceiling, needing as little as 7.1 inches of cavity clearance. A built-in cooling fan keeps the cavity temperature in check and needs its own dedicated power supply. The kit is brushed 304 stainless steel and ships with both black and white vent covers. The heater is sold separately and installation must be done by a licensed electrician.

Features:

  • Flush-mounts a Platinum Electric 4500W heater in ceiling cavities as shallow as 7.1" (180mm)
  • Integrated cooling fan manages temperature in the cavity (needs its own power supply)
  • Recess box fits between standard ceiling joists
  • Suitable for new builds and remodels/retrofits

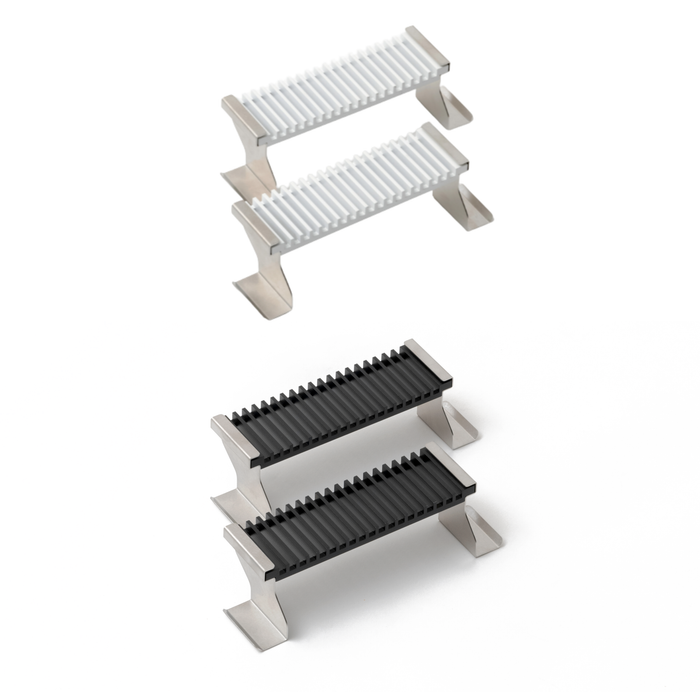

  • Black and white vent covers included to match either heater colour
  • UL certified
  • Brushed 304 stainless steel

Part Number: BH3623012-1

Type: Low-clearance ceiling recess kit with integrated cooling fan

Compatible With: Bromic Platinum Smart-Heat Electric 4500W heater

Material: Brushed stainless steel 304

Vent Covers: Black and white included (match heater colour)

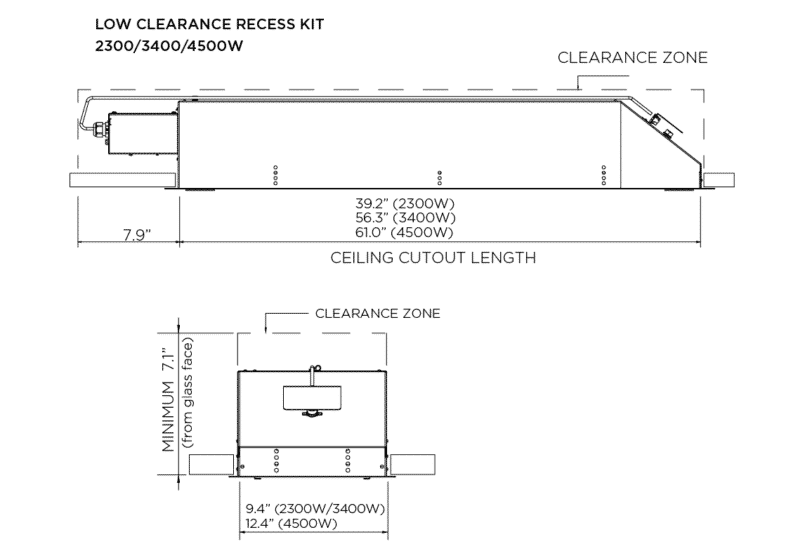

Minimum Cavity Clearance: 7.1" (180mm) between recess box and ceiling surface

Ceiling Cutout: 61.0" x 12.5" (1550 x 317mm)

Minimum Joist Gap: 12.5" (317mm)

Ceiling Thickness: 0.4"-1.2" (10-30mm)

Kit Dimensions: 62.8" L x 13.3" W x 7.0" H (1595 x 338 x 178mm)

Weight: 55.1 lbs (25 kg)

Fan Power: Dedicated supply, 100-127V, 208V or 220-240V AC, under 1.0A

Clearances: 7.9" (200mm) terminal box end to nearest surface; 19.7" (500mm) cutout to nearest wall; 19.7" (500mm) heater to heater; heater surface at least 94"-96" (2400mm) above floor

Included: Ceiling recess box, IP cover, black vent cover, white vent cover, terminal box, vent cover trims, standard trim assembly, 3-way WAGO connectors, 8x M3x6 screws, 8x M4x8 screws, 1x M6x10 screw

Not Included: Heater, ceiling fasteners, controller

Certification: UL Certified

PDF Low-Clearance Recess Kit Installation Manual (PDF) PDF View PDF Low-Clearance Recess Kit Instruction Manual - US Rev 3 (PDF) PDF View PDF LCRK Affinity Wiring Guide - North America (PDF) PDF View
