Bromic Eclipse Wall Mount Pole - Matte Black

by Bromic
SKU BH3230006
$251.90 9% Off ($22.90)
$251.90
$251.90
$229.00
$229.00
$229.00
RRP $251.90
You save $22.90
Free shipping nationwide over $299
+ Free Shipping

Shipping & Delivery

Most orders arrive within 4–10 business days — 1–3 days to ship, 3–7 days in transit. Need it faster? Email info@dawsonheat.com.

Secure checkout with

American Express Apple Pay Google Pay Mastercard PayPal Shop Pay Venmo Visa
  • Product Description
  • Specifications
  • Guides & Installation

Product Description

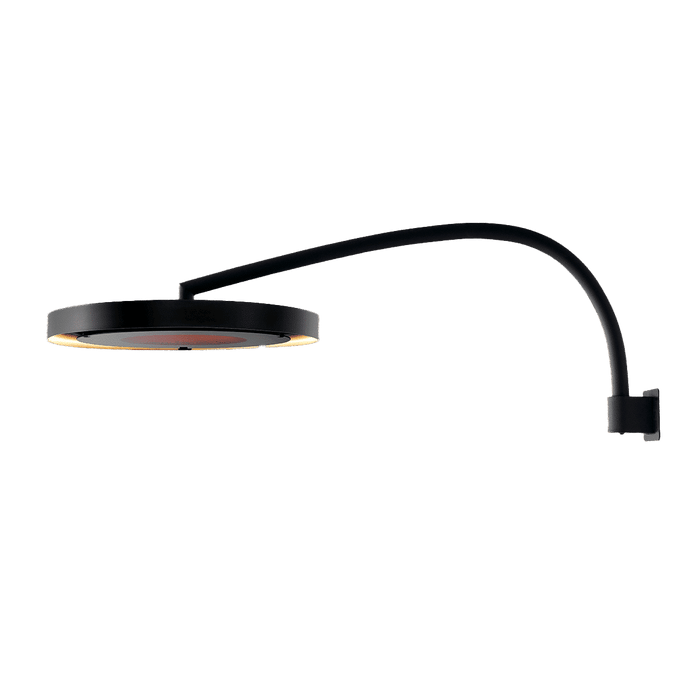

The Bromic Eclipse Wall Mount Pole (part number BH3230006) lets you mount the Eclipse Smart-Heat Electric pendant heater on a wall or other vertical structure instead of a ceiling. It has a curved, understated arm made from double-coated steel in a matte black finish. The wall bracket angle can be adjusted up to 45 degrees from the wall on each side. Wiring can run into the wall cavity, or out the underside through an optional slot using an M20 metal cable gland (not supplied).

Features:

  • Wall mounting option for the Eclipse Smart-Heat Electric pendant
  • Curved arm design in double-coated steel
  • Matte black finish to match the Eclipse heater
  • Bracket angle adjustable up to 45 degrees each side
  • Cable can run into the wall cavity or out the underside
  • Includes wall bracket, bracket cover and screw set

Part Number: BH3230006

Product Type: Ceiling mounting pole

Style: Wall (curved arm)

Material: Double-coated steel

Color: Matte Black

Compatible With: Bromic Eclipse Smart-Heat Electric pendant heater (BH0920001 series)

Wall Bracket Adjustment: Up to 45 degrees from the wall each side

Fixing: Secure bracket with fasteners in all six holes (installer to select fasteners)

Included: Wall bracket, wall bracket cover, wall mount pole, screw set (1 x M8x15 mm hex, 1 x M4x10 mm, 2 x M6x10 mm, 2 x M4x6 mm screws) and 1 x M20x1.5 blanking plug; wall fasteners not included

Installation: Mount heater head at least 8 ft above the floor; install by a licensed electrical contractor (two-person install)

PDF Eclipse Electric Installation & Instruction Manual - US (PDF) PDF View PDF Eclipse Smart-Heat Electric Cut Sheet (PDF) PDF View
