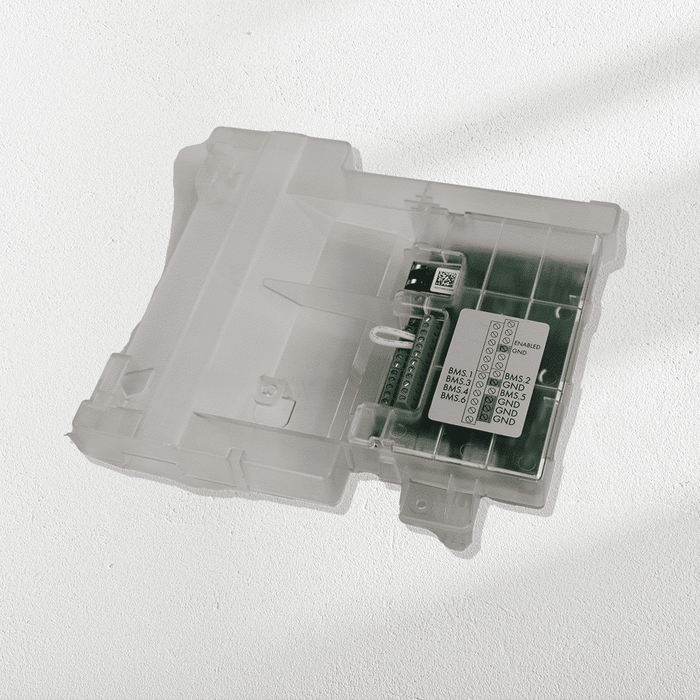

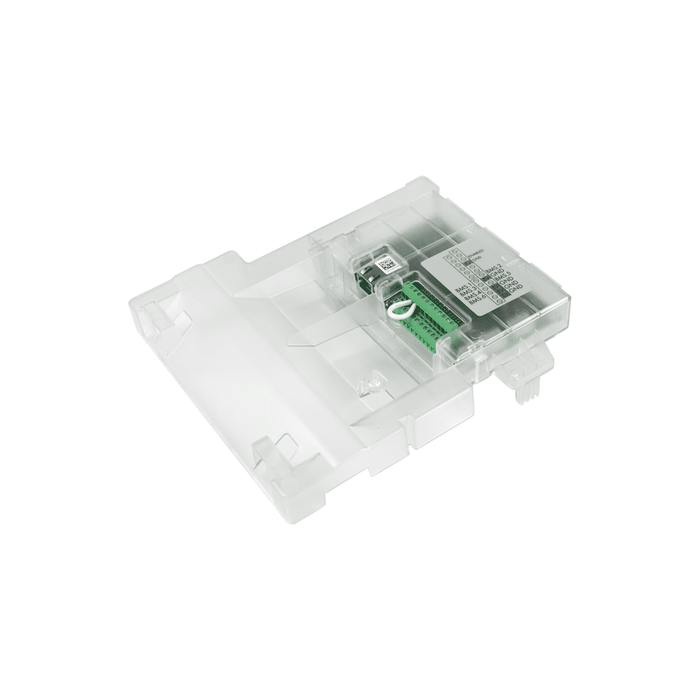

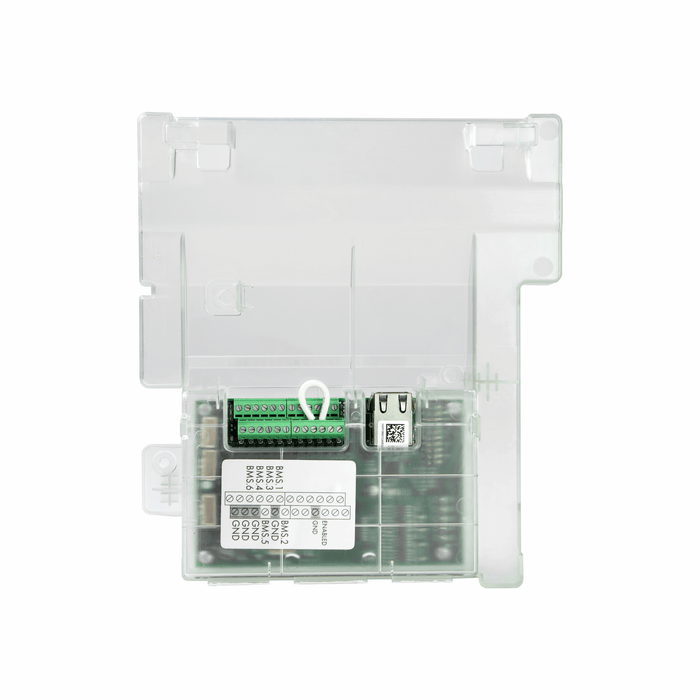

Bromic Affinity Smart-Heat Expansion Board (BMS / Ethernet)
Dawson Heat product specialist

Need Help? Our Experts are here to help!

Call Now Call Now Chat Now Chat Now Email Us Email Us

Bromic Affinity Smart-Heat Expansion Board (BMS / Ethernet)

by Bromic
SKU BH3130070
$422.40 9% Off ($38.40)
$422.40
$422.40
$384.00
$384.00
$384.00
RRP $422.40
You save $38.40
Free shipping nationwide over $299
+ Free Shipping

Shipping & Delivery

Most orders arrive within 4–10 business days — 1–3 days to ship, 3–7 days in transit. Need it faster? Email info@dawsonheat.com.

Secure checkout with

American Express Apple Pay Google Pay Mastercard PayPal Shop Pay Venmo Visa
  • Product Description
  • Specifications
  • Guides & Installation

Product Description

The Bromic Affinity Smart-Heat Expansion Board (part number BH3130070) is a plug-in accessory for the 1- and 2-channel Affinity On/Off and Dimmer controllers. It adds a wired Ethernet connection and a 0-10V input so the heaters can be run from a building management system (BMS) or home automation system. The board fits inside the controller, is secured with two screws and takes its power from the controller. The 5-channel Affinity controllers already have this board built in, and Alexa or Google Home control does not need it.

Features:

  • Adds wired Ethernet connectivity to 1- and 2-channel Affinity controllers
  • Adds a 0-10V terminal block for BMS or home automation control
  • Accepts a generic 0-10V signal configured in the BMS/automation system
  • Fits inside the controller enclosure, secured with two screws
  • Powered by the controller, no separate power supply needed
  • Blue jumper cable included to switch the controller to BMS control

Part Number: BH3130070

Type: Expansion board accessory

Functions: Ethernet, 0-10V BMS / home automation input

Compatible With: Affinity Smart-Heat On/Off and Dimmer controllers, 1 and 2 channel (built into 5-channel models)

Power: Supplied by the host controller

Mounting: Inside the controller, 2 screws

Included: Expansion board, blue jumper cable

Note: Activating BMS control (jumper connected) disables the Bromic Heating app
