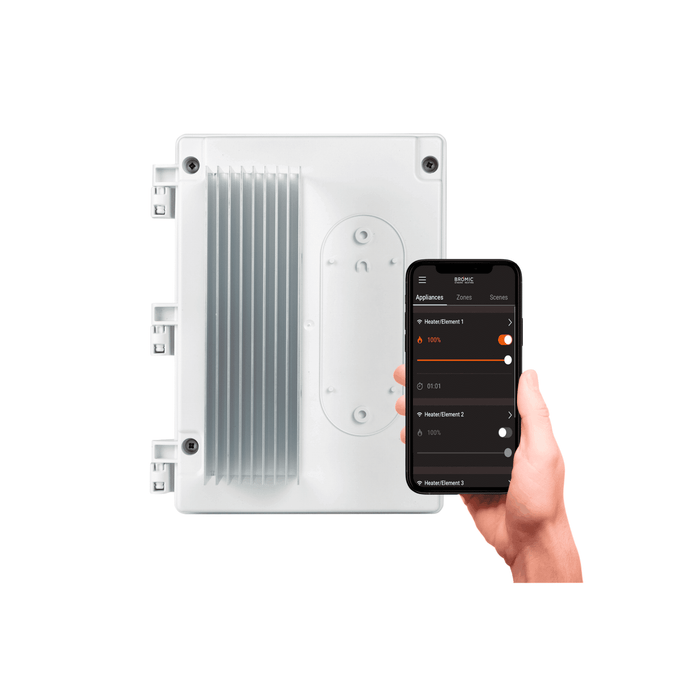

Bromic Affinity Smart-Heat Dimmer Control - 1 Channel 6kW

by Bromic
SKU BH3130061
$863.50 9% Off ($78.50)
$863.50
$863.50
$785.00
$785.00
$785.00
RRP $863.50
You save $78.50
Free shipping nationwide over $299
+ Free Shipping

Shipping & Delivery

Most orders arrive within 4–10 business days — 1–3 days to ship, 3–7 days in transit. Need it faster? Email info@dawsonheat.com.

Secure checkout with

American Express Apple Pay Google Pay Mastercard PayPal Shop Pay Venmo Visa
  • Product Description
  • Specifications
  • Guides & Installation

Product Description

The Bromic Affinity Smart-Heat Dimmer Control (part number BH3130061) is a 1-channel wireless controller that adjusts the output of Bromic electric heaters in 1% steps. Each channel handles up to 6,000W and is designed for Platinum and Tungsten electric heaters; dimmers are for electric heaters only, not gas. You control it from the Bromic Heating app over Wi-Fi or Bluetooth, or with Amazon Alexa and Google Home, and can set timers, schedules and heating zones. The enclosure is IP54 rated and certified to UL 60730-1 and CAN/CSA E60730-1.

Features:

  • 1-channel dimming control, adjustable in 1% increments
  • Up to 6,000W per channel
  • For Bromic Platinum Electric and Tungsten Electric heaters (electric only, not gas)
  • Wi-Fi (2.4GHz) and Bluetooth (up to 30 ft) connectivity, controlled from the free Bromic Heating app
  • Timers, schedules, heating zones and multi-site management in the app
  • Voice control with Amazon Alexa and Google Home
  • Optional Expansion Board (BH3130070) adds Ethernet and 0-10V BMS connections

Part Number: BH3130061

Channels: 1

Control Type: Dimmer (1% increments)

Voltage / Max Capacity per Channel: 208-277V - 6kW

Max Load per Channel: 6,000W

Total Capacity: 6kW

Compatible With: Bromic Platinum Electric and Tungsten Electric heaters (electric only)

Connectivity: Wi-Fi 2.4GHz, Bluetooth (30 ft range)

App: Bromic Heating App

Voice Assistants: Amazon Alexa, Google Home

Protection Rating: IP54

Operating Temperature: -4°F to +86°F

Non-Operating Temperature: -22°F to +158°F

Dimensions: 11.4 x 8.0 x 6.4 in

Weight: 3.5 lbs

Mounting: Wall or ceiling mount

Expansion Board: Optional (BH3130070) for Ethernet and 0-10V

Certification: UL 60730-1, CAN/CSA E60730-1

Warranty: 1 year

PDF Affinity Dimmer Control Spec Sheet (PDF) PDF View PDF Affinity Smart-Heat Control System Catalog 2026 (PDF) PDF View
