Bromic Affinity Eclipse Pendant Control - 5 Channel 30kW (6kW/Ch)
Dawson Heat product specialist

Need Help? Our Experts are here to help!

Call Now Call Now Chat Now Chat Now Email Us Email Us

Bromic Affinity Eclipse Pendant Control - 5 Channel 30kW (6kW/Ch)

by Bromic
SKU BH8380055
$5,236.00 9% Off ($476.00)
$5,236.00
$5,236.00
$4,760.00
$4,760.00
$4,760.00
RRP $5,236.00
You save $476.00
Free shipping nationwide over $299
+ Free Shipping

Shipping & Delivery

Most orders arrive within 4–10 business days — 1–3 days to ship, 3–7 days in transit. Need it faster? Email info@dawsonheat.com.

Secure checkout with

American Express Apple Pay Google Pay Mastercard PayPal Shop Pay Venmo Visa
  • Product Description
  • Specifications
  • Guides & Installation

Product Description

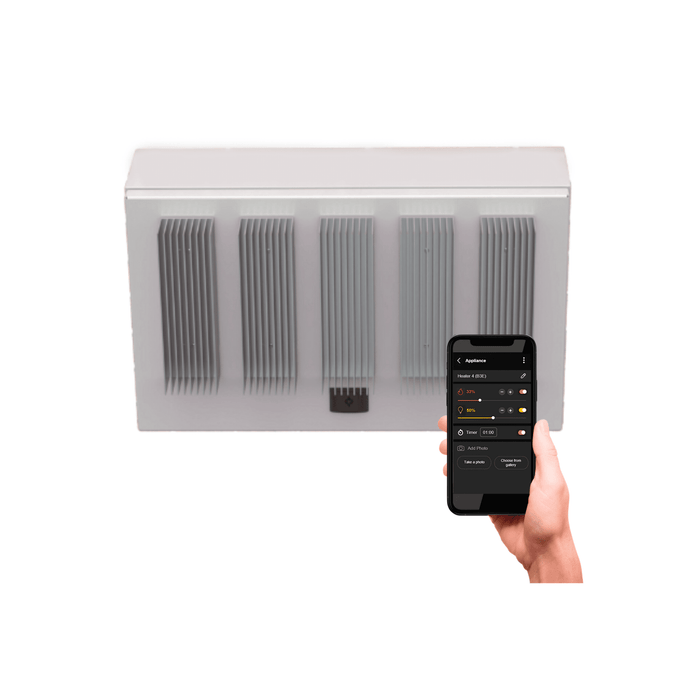

The Bromic Affinity Eclipse Control (part number BH8380055) is a 5-channel Wi-Fi and Bluetooth controller made for Bromic Eclipse electric pendant heaters. Each channel runs one Eclipse heater and controls both its heat output and its integrated LED light rail. It works with the Bromic Heating app, Amazon Alexa and Google Home, and supports timers, schedules and heating zones. The enclosure is IP54 rated and the controller is certified to UL 60730-1 and CAN/CSA E60730-1.

Features:

  • 5-channel control for Bromic Eclipse electric heaters
  • Controls Eclipse heat output and the LED light rail
  • Each channel controls one Eclipse heater
  • Wi-Fi (2.4GHz) and Bluetooth (up to 30 ft) connectivity, controlled from the free Bromic Heating app
  • Timers, schedules, heating zones and multi-site management in the app
  • Voice control with Amazon Alexa and Google Home
  • Incremental control of both heat and LED lighting
  • Built-in Expansion Board for Ethernet and 0-10V BMS integration

Part Number: BH8380055

Channels: 5

Voltage / Max Capacity per Channel: 3-phase: 3-120/208V, 3N-220/380V, 3N-230/400V, 3N-240/415V, 3N-277/480V - 6kW each (30A max)

Compatible With: Bromic Eclipse Electric (pendant) heaters

Connectivity: Wi-Fi 2.4GHz, Bluetooth (30 ft range)

App: Bromic Heating App

Voice Assistants: Amazon Alexa, Google Home

Protection Rating: IP54

Operating Temperature: -4°F to +86°F

Non-Operating Temperature: -22°F to +158°F

Dimensions: 19.7 x 13.4 x 10.0 in

Weight: 33.1 lbs

Phase: 3-phase

Mounting: Wall mount only (minimum 6 ft height, away from accidental contact)

Included: Expansion Board (Ethernet / 0-10V) built in; enclosure key (packed inside the enclosure)

Certification: UL 60730-1, CAN/CSA E60730-1

Warranty: 1 year parts

PDF Affinity Eclipse Control Spec Sheet (PDF) PDF View PDF Affinity Smart-Heat Control System Catalog 2026 (PDF) PDF View
